Metallurgical Electric Single girder Overhead Crane

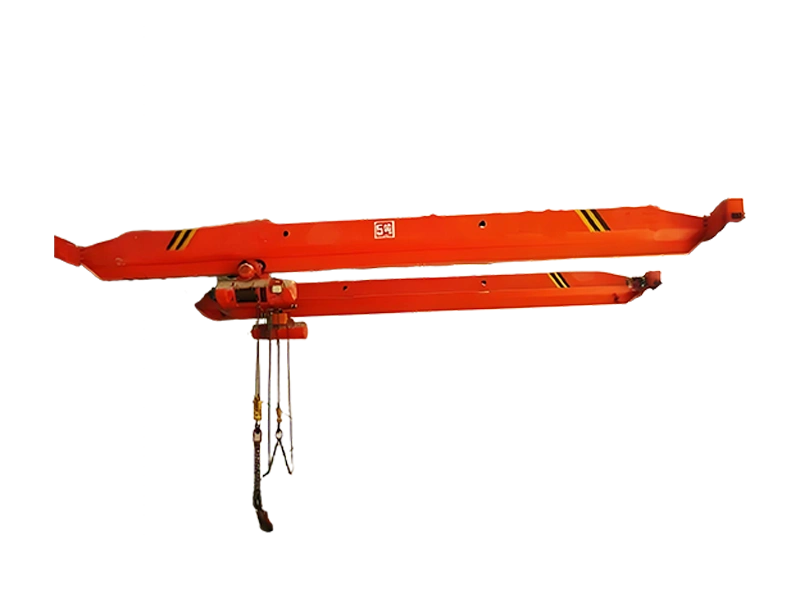

LDY single girder crane for metallurgy is mainly used for lifting molten metal and foundry location.Its configured lifting mechanism is model YHn electric hoist for metallurgy,hoisting capacity≤10t. Main girder bottom of crane adopts to special heat insulation disposal.W orking environment temperature is-10 ℃~60℃,relative humidity is≤50%in 40℃.design and manufacture of crane meet the requirements ofAQSIQ Doc#(2007)375.the requirements of AQSIQ Doc#(2007)375.Other situations that lift fusion non-metallic material or hot solid metal can refer.

Main Technical Data

crane travelling mechanism	m/min travelling speed		20	30
	speed ratio		58.95	39.42
	Motor	t y p e	cone squirrel-cage
		( K W ) power	0.8×2、1.5×2
		(r/min) rotational speed	1380
lifting mechanism (electric hoist)& electric hoist travelling mechanism	model of electic hoist		YH_Ⅱ model
	lifting speed		8、7
	H ( m ) lifting height		9、12、15、18、20
	( m / m i n) travelling speed		20
	motor		cone squirrel-cage model
working system			intermediate Jc=25%
electric current			380V 50Hz three-phase
wheel diameter			Φ270 Φ400
width of trair			37-70

Parameters

Tonnage (t)	Span S (m)	Gross Vehicle Weight G (t) Ground Operation	Maximum Wheel Load Rmax (kN)	Minimum Wheel Load Rmin (kN)	Tread to Main Beam Top H1	Tread to Hook Center H2	Main Beam Overall Height H3	End Beam Wheelbase W	End Beam Overall Length B	Hook Left Limit C1	Hook Right Limit C2
2	7.5	2.14	15.2	4.4	490	1405	595	2000	2500	871	1291
	8	2.19	15.4	4.5
	8.5	2.24	15.6	4.6
	9	2.30	15.8	4.7
	9.5	2.35	16.0	4.8
	10	2.41	16.2	4.9
	10.5	2.45	16.4	5.0
	11	2.50	16.6	5.2
	11.5	2.54	16.7	5.3		1510	700
	12	2.60	16.9	5.4
	12.5	2.65	17.1	5.5
	13	2.71	17.3	5.7
	13.5	2.77	17.4	5.8
	14	2.83	17.6	5.9
	14.5	3.14	18.4	6.7	580	1520	800	2500	3000
	15	3.21	18.6	6.9
	15.5	3.27	18.8	7.0
	16	3.34	19.0	7.2
	16.5	3.40	19.2	7.3
	17	3.46	19.3	7.5
	17.5	3.97	20.6	8.8	660	1540	900
	18	4.05	20.8	8.9
	18.5	4.12	21.0	9.1
2	19	4.20	21.2	9.3	660	1540	900	2500	3000	871	1291
	19.5	4.28	21.4	9.5	660	1540	900	2500	3000
	20	4.96	23.2	11.2	785	1515	1000	3000	3500
	20.5	5.05	23.4	11.4
	21	5.13	23.6	11.6
	21.5	5.22	23.9	11.9
	22	5.31	24.1	12.1
	22.5	5.40	24.3	12.3
	23	5.83	25.4	13.4	820	1580	1100	3500	4000
	23.5	5.92	25.7	13.6
	24	6.01	25.9	13.8
	24.5	6.11	26.1	14.0
	25	6.20	26.4	14.3
	25.5	6.29	26.6	14.5
	26	8.02	31.0	18.8	875	1625	1200	4000	4500
	26.5	8.15	31.3	19.1
	27	8.27	31.6	19.5
	27.5	8.40	31.9	19.8
	28	8.52	32.2	20.1
	28.5	8.65	32.6	20.4
3	7.5	2.14	19.7	4.4	530	1570	700	2000	2500	841	1291
	8	2.19	20.0	4.5
	8.5	2.25	20.2	4.6
	9	2.31	20.4	4.7
	9.5	2.36	20.7	4.9
	10	2.42	20.9	5.0
	10.5	2.48	21.1	5.1
	11	2.53	21.3	5.3
	11.5	2.77	21.9	5.8	580	1620	800
	12	2.83	22.2	6.0
	12.5	2.89	22.4	601
	13	2.96	22.6	6.3
	13.5	3.02	22.8	6.4
	14	3.09	23.0	6.6
	14.5	3.56	24.2	7.8	660	1640	900	2500	3000
	15	3.63	24.4	7.9
	15.5	3.71	24.6	8.1
	16	3.79	24.9	8.3
	16.5	3.86	25.1	8.5
	17	3.94	25.3	8.7
	17.5	4.45	26.6	9.9	745	1650	1000
	18	4.54	26.8	10.2
	18.5	4.62	27.1	10.4
	19	4.71	27.3	10.6
	19.5	4.80	27.6	10.8
3	20	5.28	28.8	12.0	820	1680	1100	3000	3500	841	1291
	20.5	5.37	29.0	12.2
	21	5.46	29.3	12.5
	21.5	5.56	29.5	12.7
	22	5.65	29.8	12.9
	22.5	5.74	30.0	13.1
	23	7.09	33.4	16.5	875	1725	1200	3500	4000
	23.5	7.21	33.7	16.8
	24	7.33	34.0	17.1
	24.5	7.45	34.3	17.4
	25	7.57	34.7	17.7
	25.5	7.69	35.0	18.0
	26	9.03	38.3	21.3	925	1775	1300	4000	4500
	26.5	9.17	38.7	21.7
	27	9.31	39.1	22.1
	27.5	9.45	39.4	22.4
	28	9.60	39.8	22.8
	28.5	9.74	40.1	23.1
5	7.5	2.65	30.4	5.2	660	1730	800	2000	2500	841	1310
	8	2.72	30.8	5.3
	8.5	2.79	31.1	5.5
	9	2.86	31.5	5.6
	9.5	2.94	31.8	5.8
	10	3.01	32.1	5.9
	10.5	3.08	32.4	6.1
	11	3.15	32.7	6.2
	11.5	3.33	33.2	6.7	745	1745	900
	12	3.41	33.5	6.9
	12.5	3.49	33.8	7.0
	13	3.56	34.0	7.2
	13.5	3.64	34.3	7.4
	14	3.71	34.5	7.6
	14.5	4.19	35.8	8.7	820	1770	1000	2500	3000
	15	4.28	36.1	9.0
	15.5	4.36	36.3	9.2
	16	4.45	36.6	9.4
	16.5	4.54	36.9	9.6
	17	4.63	37.1	9.8
	17.5	4.87	37.8	10.4	875	1815	1100
	18	4.96	38.1	10.6
	18.5	5.06	38.3	10.9
	19	5.15	38.6	11.1
	19.5	5.24	38.9	11.3
	20	6.63	42.3	14.8	925	1865	1200	3000	3500
	20.5	6.74	42.7	15.1
	21	6.86	43.0	15.3
	21.5	6.98	43.3	15.6
5	22	7.10	43.6	15.9	925	1865	1200	3000	3500	818.5	1291
	22.5	7.22	44.0	16.2	925	1865	1200	3000	3500
	23	8.17	46.4	18.6	1015	1875	1300	3500	4000
	23.5	8.30	46.7	18.9
	24	8.44	47.1	19.3
	24.5	8.58	47.4	19.6
	25	8.71	47.8	19.9
	25.5	8.85	48.2	20.3
	26	10.45	52.2	24.3	1065	1925	1400	4000	4500
	26.5	10.62	52.6	24.7
	27	10.78	53.0	25.1
	27.5	10.94	53.5	25.5
	28	11.11	53.9	25.9
	28.5	11.27	54.3	26.3
10	7.5	3.55	50.8	6.5	820	1780	1000			15001	2100
	8	3.63	51.7	6.6
	8.5	3.72	52.6	6.8
	9	3.81	53.4	7.0
	9.5	3.90	54.1	7.2
	10	3.99	54.7	7.4
	10.5	4.07	55.4	7.6				2000	2500
	11	4.16	56.0	7.7
	11.5	4.39	56.9	8.3	875	1825	1100
	12	4.48	57.4	8.5
	12.5	4.58	57.9	8.7
	13	4.67	58.4	8.9
	13.5	4.76	58.9	9.1
	14	4.86	59.3	9.4
	14.5	5.15	60.3	10.1		1865	1140	2500	3000
	15	5.24	60.7	10.3
	15.5	5.34	61.1	10.5
	16	5.44	61.6	10.8
	16.5	5.54	62.0	11.0
	17	5.64	62.4	11.2
	17.6	6.44	64.5	13.2	925	1925	1250
	18	6.55	64.9	13.5
	18.5	6.67	65.3	13.8
	19	6.79	65.8	14.1
	19.5	6.91	66.2	14.4
	20	8.31	69.8	17.9	1100	1850	1350	3000	3500
	20.5	8.46	70.3	18.2
	21	8.61	70.7	18.6
	21.5	8.76	71.2	18.9
	22	8.91	71.7	19.3
	22.5	9.06	72.1	19.7
10	23	11.15	77.5	24.9	1200	1595	1450	3500	4000	41.5	1310
	23.5	11.34	78.0	25.4
	24	11.53	78.5	25.8
	24.5	11.71	79.1	26.3
	25	11.90	79.6	26.8
	25.5	12.08	80.1	27.2
	26	14.24	85.6	32.6	1280	1870	1550	4000	4500
	26.5	14.45	86.2	33.1
	27	14.66	86.8	33.6
	27.5	14.87	87.3	34.2
	28	15.08	87.9	34.7
	28.5	15.29	88.5	35.2
