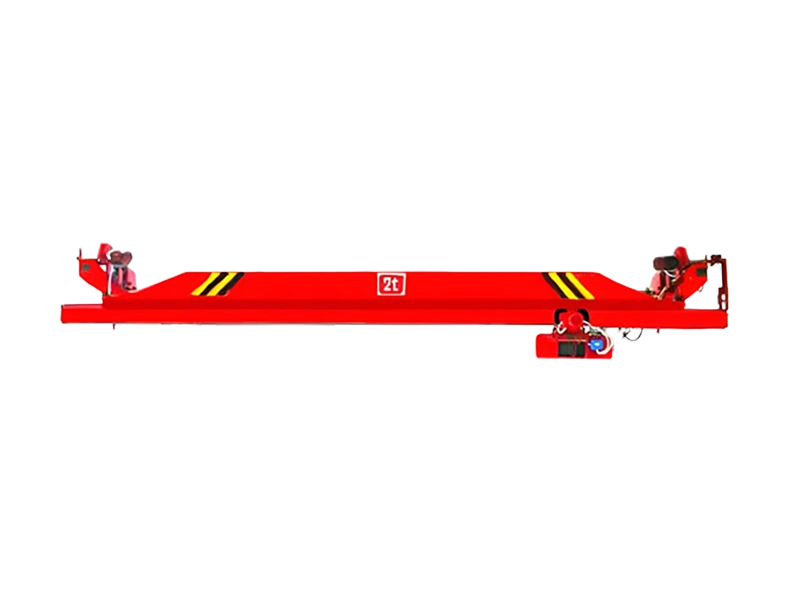

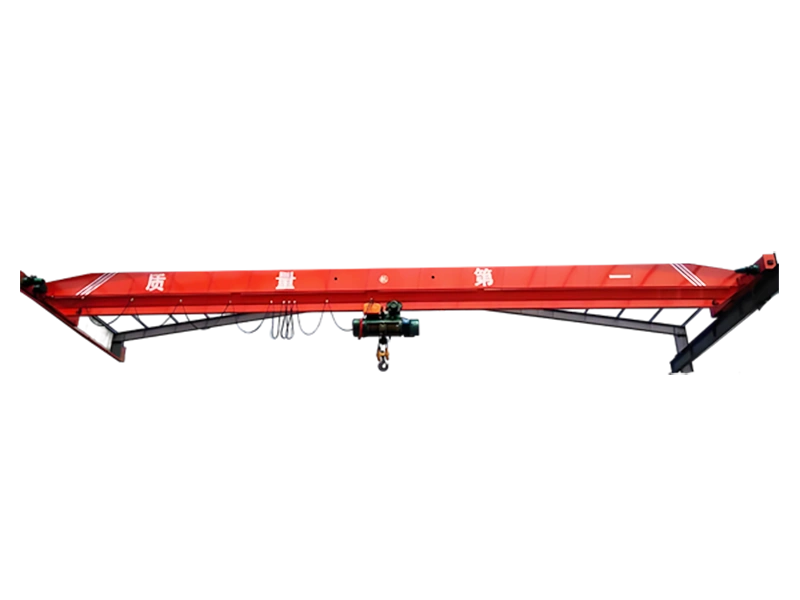

Explosion-proof Electric Single Girder Crane

Main Technical Data

crane travelling mechanism	m/min travelling speed		20
	speed ratio		58.95
	Motor	type	cone squirrel-cage
		(kw)power	0.8×2、1.5×2、2.2×2
		(r/min) rotational speed	1380
lifting mechanism (electric hoist)& electric hoist travelling mechanism	model of electric hoist		HB、BCD、BMD
	(m/min) lifting speed		8/0.8、7/0.7、3.5/0.35	8、7、3.5
	H(m) lifting height		6、9、12、18、24
	(m/min) travelling speed		20
	motor		cone squirrel-cage model
working system			intermediate Jc=25%
electric current			380V 50Hz three-phase
wheel diameter			φ270、φ400
width of trail			37～70
explosion proof grade			Exd IBT4、ExdICT4

Parameters

(t) capacity	( m ) S span	G(t) total weight ground control	Rmax(kN) max wheel load	Rmin(kN) min wheel load	H1 Wheel tread approach to top	H2 Wheel tread approach to center of hook	H3 Total height of main girder	W End carriage wheelbase	B Total length of end carriage	C1 Hook approach to limit position on the left	C2 Hook approach to limit position on the right
1	7.5	1.67	8.9	3.9	490	910	550	2000	2500	796	1274
	8	1.72	9.1	4.0
	8.5	1.77	9.2	4.1
	9	1.81	9.4	4.3
	9.5	1.86	9.5	4.4
	10	1.91	9.7	4.5
	10.5	1.96	9.8	4.6
	11	1.95	9.8	4.6
	11.5	2.00	10.0	4.7
	12	2.05	10.1	4.8
	12.5	2.09	10.2	4.9
	13	2.14	10.4	5.0
	13.5	2.19	10.5	5.2
	14	2.24	10.6	5.3
	14.5	2.43	11.1	5.8		955	595	2500	3000
	15	2.48	11.3	5.9
	15.5	2.53	11.4	6.0
	16	2.58	11.5	6.1
	16.5	2.63	11.7	6.3
	17	2.66	11.7	6.3
	17.5	2.85	12.2	6.8	530	970	650
	18	2.90	12.4	6.9
	18.5	2.96	12.5	7.1
	19	3.01	12.7	7.2
	19.5	3.02	12.7	7.2
	20	3.20	13.1	7.7	580		700	3000	3500
	20.5	3.26	13.3	7.8
	21	3.32	13.4	8.0
	21.5	3.37	13.6	8.1
	22	3.43	13.7	8.2
	22.5	3.49	13.9	8.4
	23	4.07	15.3	9.8	660	990	800	3500	4000
	23.5	4.13	15.5	10.0
	24	4.20	15.7	10.2
	24.5	4.26	15.8	10.3
	25	4.32	16.0	10.5
	25.5	4.39	16.2	10.6
	26	5.35	18.6	13.0	745	1010	900	4000	4500
	26.5	5.43	18.8	13.2
	27	5.52	19.0	13.5
	27.5	5.60	19.2	13.7
	28	5.68	19.4	13.9
	28.5	5.76	19.6	14.1
2	7.5	1.79	13.8	4.1	490	1080	550	2000	2500	871	1274
	8	1.84	14.0	4.2
	8.5	1.88	14.1	4.3
	9	1.93	14.3	4.4
	9.5	1.98	14.5	4.5
	10	2.03	14.7	4.6
	10.5	2.07	14.8	4.7
	11	2.12	15.0	4.8
	11.5	2.25	15.4	5.1		1125	595
	12	2.30	15.5	5.3
	12.5	2.35	15.7	5.4
	13	2.40	15.8	5.5
	13.5	2.45	16.0	5.6
	14	2.50	16.1	5.8
	14.5	2.62	16.5	6.1	580	1140	700	2500	3000
	15	2.68	16.6	6.2
	15.5	2.74	16.8	6.3
	16	2.79	17.0	6.5
	16.5	2.85	17.1	6.6
	17	2.91	17.3	6.8
	17.5	3.23	18.1	7.6	660	1160	800
	18	3.30	18.3	7.7
	18.5	3.36	18.5	7.9
	19	3.42	18.6	8.0
	19.5	3.49	18.8	8.2
	20	4.09	20.3	9.7	785	1135	900	3000	3500
	20.5	4.17	20.5	9.9
	21	4.24	20.7	10.1
	21.5	4.32	20.9	10.3
	22	4.40	21.1	10.5
	22.5	4.47	21.3	10.7
	23	5.31	23.4	12.7	820	1200	1000	3500	4000
	23.5	5.40	23.7	13.0
	24	5.49	23.9	13.2
	24.5	5.57	24.1	13.4
	25	5.66	24.3	13.6
	25.5	5.75	24.6	13.8
	26	6.40	26.2	15.5	875	1250	1100	4000	4500
	26.5	6.50	26.5	15.7
	27	6.60	26.7	16.0
	27.5	6.69	27.0	16.2
	28	6.79	27.2	16.4
	28.5	6.89	27.5	16.7
3	7.5	1.93	18.9	4.2	530	1255	650	2000	2500	818.5	1291
	8	1.98	19.1	4.3
	8.5	2.03	19.4	4.4
	9	2.09	19.6	4.5
	9.5	2.14	19.8	4.7
	10	2.20	20.0	4.8
	10.5	2.25	20.2	4.9
	11	2.31	20.4	5.0
	11.5	2.41	20.7	5.3	580		700
	12	2.47	20.9	5.4
	12.5	2.53	21.1	5.6
	13	2.59	21.3	5.7
	13.5	2.64	21.5	5.9
	14	2.70	21.7	6.0
	14.5	3.02	22.5	6.8	660	1275	800	2500	3000
	15	3.08	22.7	6.9
	15.5	3.14	22.9	7.1
	16	3.21	23.1	7.2
	16.5	3.27	23.2	7.4
	17	3.34	23.4	7.6
	17.5	3.84	24.7	8.8	745	1290	900
	18	3.91	24.9	9.0
	18.5	3.99	25.1	9.2
	19	4.06	25.3	9.4
	19.5	4.14	25.5	9.6
	20	4.92	27.5	11.5	820	1315	1100	3000	3500
	20.5	5.01	27.7	11.7
	21	5.09	28.0	11.9
	21.5	5.18	28.2	12.2
	22	5.27	28.4	12.4
	22.5	5.36	28.7	12.6
	23	5.71	29.6	13.5	875	1360		3500	4000
	23.5	5.80	29.8	13.7
	24	5.89	30.0	13.9
	24.5	5.99	30.3	14.2
	25	6.08	30.5	14.4
	25.5	6.17	30.8	14.6
	26	7.97	35.3	19.1	925	1660	1200	4000	4500
	26.5	8.09	35.6	19.4
	27	8.22	35.9	19.7
	27.5	8.34	36.2	20.0
	28	8.46	36.6	20.3
	28.5	8.59	36.9	20.7
