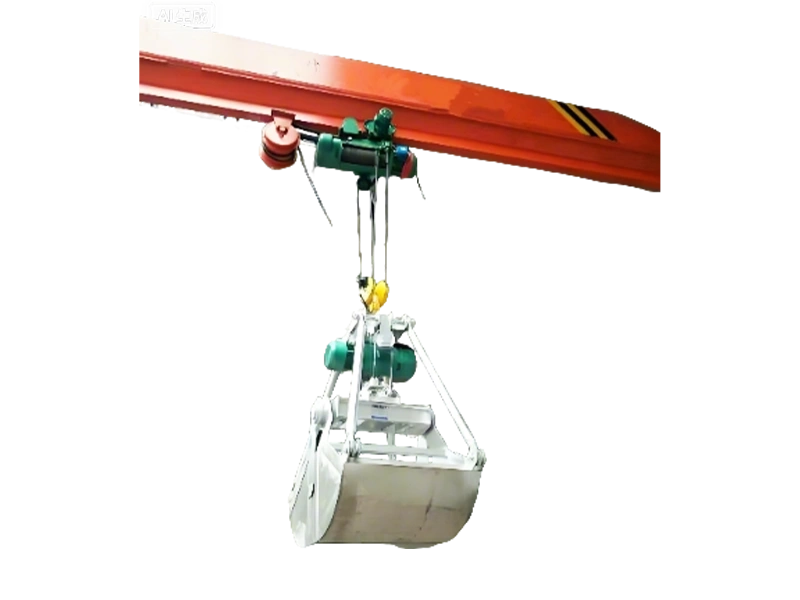

Name: Electric Single Girder Grab Crane
Brand: OULANGE
SKU: PROD-42
Availability: InStock

Electric Single Girder Grab Crane

Lifting capacity				3											5
Lifting height				18											18
Lifting speed Vl				16											16
false specifie gravity of materials				1											≤1
Working system				FC=25%											A 5
Travelling speed			trolley	30;75 ground controlling:room controlling											30;75 ground eontrolling;room eontroling
			crab	20:30											20:30
grad				model		(t)dead weight				(m³ )volume					model		dead weight				(m³ )volume
				201		2.3				0.75					301		3.1				1.5
motor	use			model			(kw)power				(r/min)rotation speed				model			(kw)power				(r/min)rotation speed
	hoisting			ZD₁32-4			4.5				1380				ZD₁41-4			7.5				1400
	open and close			ZD₁32-4			4.5				1380				ZD₁41-4			7.5				1400
	trolley travelling floor/control room			ZDY₁(D)21-4/ZDR100-4(D)			2×0.8/2×1.5				1380				ZDY₁(D)21-4/ZDR100-4(D)			2×0.8/2×1.5				1380
	crab travelling			ZDY,(D)21-4			2×0.8				1380				ZDY21-4			2×0.8				1380
span(m)				7.5	9	10.5	12	13.5	15		16.5		19.5	22.5	7.5	9	10.5	12	13.5	15		16.5		19.5	22.5
totalweight of crane floor/control room				4.18 4.58	4.33 4.73	4.48 4.48	4.68 5.08	4.89 5.2	5.55 5.95		5.75 6.15		6.85 6.9	7.13 7.53	5.24 5.64	5.14 5.81	5.58 5.98	6.12 6.52	6.37 6.77	6.89 7.29		7.12 7.52		7.67 8.07	8.75 9.15
max.wheel load floor/control room				2.15 2.45	2.19 2.49	2.23 2.53	2.28 2.5	2.34 2.64	2.50 2.80		2.55 2.85		2.80 3.10	2.94 3.24	3.28 3.58	3.32 3.62	3.36 3.36	3.50 3.80	3.57 3.87	3.70 4.00		3.76/ 4.06		3.93 4.23	4.20 4.50
basic dimensions		K		2000			2500					3000			2000			25000					3000
		B		2500			3000					3500			2500			3000					3500
		H		~3670											~3630
		H,		530			580		660			745		820	580			660		785			820		875

Are you Manufacturer or Trading Company?

We are an integrated industrial and trade enterprises. We have our own R&D team, factory and marketing department.
Which standard of your crane and crane components apply to?

Our Crane can design and manufacture base on FEM, ISO EN, GB standard.
How do you ensure your product quality?

All our processes strictly adhere to ISO-9001 procedures, which include Material Traceability, ISO WPQR and welder certificate, Measuring Device Calibration, NDT for the welding, and full assembling and load testing before delivery.
How can I make payment?

We accept T/T bank transfer, Paypal.
How can I assembly the cranes in my factory?

We suggest you to recruit a crane service team in local to install the crane base on our Installation Guideline and User manual. If cannot, we can send engineer to your factory to guide you do the installation with extra charge, and the transportation, accommodation, translator shall be covered by your side also.
