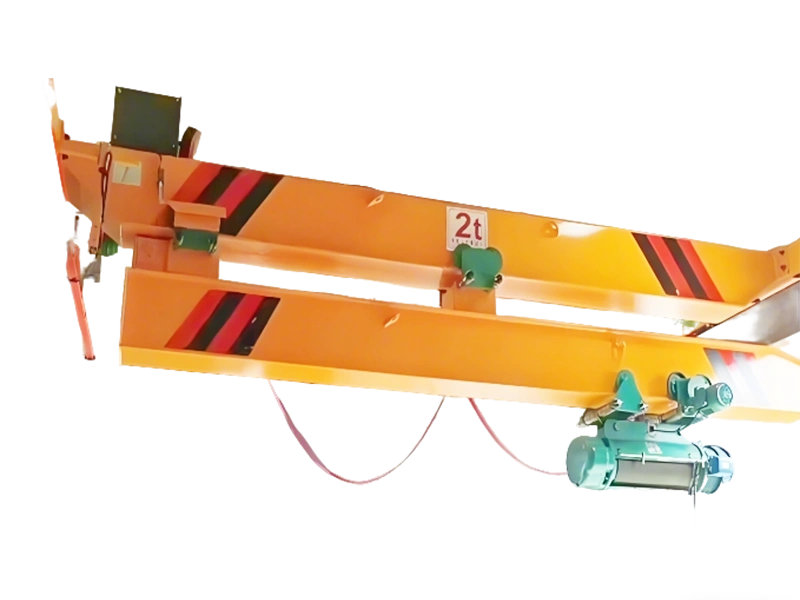

Electric Suspended Track-crossing Crane

XG type electric hanging orbit crane is the special hoist equipment for generating sets of coal grinding system provided by power plant.It is mainly used for overhauling the coal grinding mill.The operation level is level Al-A3 and the operation temperature is-25～+40℃.It is not suitable to hoist the melting metal or toxic,flammable and explosive articles.This product is the combined equipment. It is made of electric hoist dolly,electric two beams hanging crane(main hoist),(manual)electric mono(two)beam hanging crane(auxiliary hoist)and orbit equipment.The electric system is operated and controlled by button switch.

Main Technical Data

Project		Unit	Electrie Two Beam Hanging Crane(Main Hoist)	Electric Single Beam Hanging Crane(Auxíliary Hoist)	Dolly of Eleetrie Hoist
hoisting capacity		t	12.5+12.5	12.5	12.5+12.5
span		mm	3000	5000
hoisting height		m	10	10	10
hoisting speed		m/min	3.5	3.5	3.5
running speed		m/min	20	20	20
work level			A3	A3	Hoisting Mechanism M3
Running electric machinery	Type		ZDY121-4	ZDY121-4	ZDY121-4
Running electric machinery	Power	kw	0.8×4	0.8×2n(n means quantity of auxiliary hoist)	0.8×4
Hoisting electric machinery	T y p e				ZD151-4
Hoisting electric machinery	P ow e r	kw			13×2
Maximum wheel pressure of wheel in the first group		kg	71.6	71.8	34
Quality		mm	2750	1450×n(n means quanuly f liaryhoist)	1130×2
Wheel diameter			φ164
Power supply			Three Phase 50Hz 380V

Project		Unit	Electric Two Beam Hanging Crane(Main Hoist)	Electric Single Beam Hanging Crane(Auxiliary Hoist)	Dolly of Eleetrie Hoist
hoisting capacity		t	16+16	16	16+16
span		mm	3650	4000
hoisting height		m	11	11	11
hoisting speed		m/min	3.5	3.5	3.5
running speed		m/min	20	20	20
work level			A3	A3	Hoisting Mechanism M3
Running electric machinery	Type		ZDY121-4	ZDY121-4	ZDY121-4
Running electric machinery	Power	ky	0.8×4	0.8×2n(n means quantity of auxiliary hoist)	0.8×4
Hoisting electric- machinery	Type				ZD151-4
Hoisting electric- machinery	Power	kw			13×2
Maximum wheel pressure of wheel in the first group		kg	90	90.1	43.1
Quality		mm	3050	1560×n(n means quantity of auxiliary hoist)	1240×2
Wheel diameter			φ164
Power supply			Three Phase 50Hz 380V

Project		Unit	Electric Two Beam Hanging Crane(Main Hoist)	Electric Single Beam Hanging Crane(Auxiliary Hoist)	Dolly of Eleetrie Hoist
hoisting capacity		t	20+20	20	20+20
span		mm	3500	3650	1500
hoisting height		m	10	10	10
hoisting speed		m/min	3.3	3.3	3.3
running speed		m/min	20	20	20
work level			A3	A3	Hoisting Mechanism M3
Running electric machinery	Type		ZDY121-4	ZDY121-4	ZDY121-4
Running electric machinery	Power	kw	0.8×8	0.8×4n(n means quantity of auxiliary hoist)	0.8×8
Hoisting electric machinery	Type				ZD152-4
Hoisting electric machinery	Power	kw			18.5×2
Maximum wheel pressure of wheel in the first group		kg	91.8	92.9	59.8
Quality		mm	5010	2380×n(n means quantity of auxiliary hoist)	3950×2
Wheel diameter			φ164
Power supply			Three Phase 50Hz 380V

ЧАСТО ЗАДАВАЕМЫЕ ВОПРОСЫ

Are you Manufacturer or Trading Company?

We are an integrated industrial and trade enterprises. We have our own R&D team, factory and marketing department.
Which standard of your crane and crane components apply to?

Our Crane can design and manufacture base on FEM, ISO EN, GB standard.
How do you ensure your product quality?

All our processes strictly adhere to ISO-9001 procedures, which include Material Traceability, ISO WPQR and welder certificate, Measuring Device Calibration, NDT for the welding, and full assembling and load testing before delivery.
How can I make payment?

We accept T/T bank transfer, Paypal.
How can I assembly the cranes in my factory?

We suggest you to recruit a crane service team in local to install the crane base on our Installation Guideline and User manual. If cannot, we can send engineer to your factory to guide you do the installation with extra charge, and the transportation, accommodation, translator shall be covered by your side also.
