Double Girder Overhead Crane With Hook 75/20~125/32T

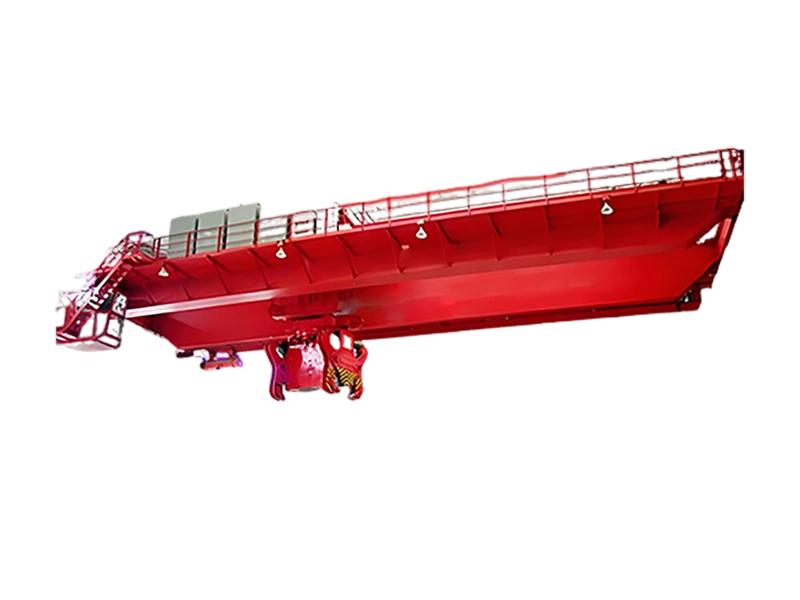

1.QD model overhead crane with hook is mainly composed of bridge, running gear of crane,trolley and electrical device,etc. lt is divided into two working classes: A5 and A6 according to the use grade and load-up condition.
2. There are three kinds of method for entering the platform of cab: from the side, from the end and from the top. The figure is theside entrance: arrowhead A shows the end entrance, the top entrance is at the place there is no door.
3. The figure shows that the cab is mounted at the left end.
4. Safe slide wire or angle iron can be used for electric conduction ofthe crane, itcan be either at the opposite side ofthe cab ( sameas the figure) or at the same side ofthe cab.
5.Operation ofthe crane shall be finished in the cab completely.
6. H0 is the increased heightofbuffer ofthe crane,H0≤250.

Technical Specifications

Liting capactiy					t	75/20							100/20
Span					m	13.5	16.5	19.5	22.5	25.5	28.5	31.5	13	16	19	22		25	28	31
MaxLifting Height	Main hook					20							20
	Auxiliary hook					22							22
end	Hositing		Main		m/min	4.7							3.9
			Auxiliary			9.2							7.2
	trolley travelling					38.4							33.9
	crane travelling			A5		61				53.9			64.9			65.6
				A6		77.8				67			61.8
Motor	Hositing		Main	A5	Type/ Kw	YZR315S8/85							YZR315S8/85
				A6		YZR315M-8/90							YZR315M-8/90
			Auxiliary			YZR250M1-8/35							YZR225M-8/26
	trolley travelling					YZR180L-8/13							YZR180L8/13
	crane travelling			A5		YZR180L-6/17							YZR200L-8/18.5				YZR225M-8/26
				A6		YZR200L6/22							YZR200L-6/22				YZR225M-6/30
(mm)Dimensions				A5	B	8728							8828
					L	4400							4400
					S1	1015							985
					S2	2310							2420
					S3	1990							2230
					S4	3285							3665
					b	300							310
					E	3300							3600
					H	3422		3426	3430	3428	3432	3434	3660	3662	3664	3670			3672	3674
					H1	950+HO
					H2	398	538	542	546	844	848	850	538	540	544	550		850	852	854
					H3	2818	2958	2962	2966	3264	3268	3270	2958	2960	2964	2970		3270	3272	3274
					H4	1588		1584	1580	1582	1578	1576	1886	1884	1882	1876			1874	1872
					H5	1154							1464
				A6	B	8728							8828
					L	4400							4400
					S1	1015							985
					S2	2310							2420
					S3	1990							2230
					S4	3285							3665
					b	300							310
					E	3300							3600
					H	3424		3428	3432	3430	3434	3436	3662	3664	3666	3672			3674	3676
					H1	950+HO
					H2	400	540	544	546	846	850	852	540	542	546	552		852	854	856
					H3	2820	2960	2964	2968	3266	3270	3272	2960	2962	2966	2972		3272	3274	3276
					H4	1586		1582	1578	1580	1576	1574	1884	1882	1880	1874			1872	1870
					H5	1154							1464
Weight		trolley		A5	Kg	27672							36770
				A6		27989							36890
		Total weight		A5		59335	63611	68656	74533	79144	85183	91983	71767	76348	81378	89181		95842	101569	111604
				A6		61598	66392	71288	77742	82675	89252	95314	73301	78100	82981	91341		98344	104609	114366
Maxwheel load				A5	KN	271	284	296	307	316	327	339	347	360	369	385		397	409	426
				A6		283	300	311	323	333	344	354	350	362	371	387		340	412	428
Seel track						QU100
Power source						380V 50Hz 3-Phase A .C . 380V 50H

Lifting capactiy					t	125/32
Span					m	13	16	19	22	25	28	31
MaxLifing Height	Main hook					20
	Auxiliary hook					22
spend	Hositing		Main		m/min	3.9
			Auxiliary			7.5
	trolley travelling					33
	crane travelling			A5		62.3
				A6		63.3
Motor	Hositing		Main	A5	Type/ Kw	YZR355M-10/110
				A6		YZR355L1-10/110
			Auxiiary			YZR280S-10/42
	trolley travelling					YZR200L-8/18.5
	crane traveling			A5		YZR225M-8/26
				A6		YZR225M-8/22			YZR250M1-8/30
(mm)Dimensions				A5	B	9100
					L	4400
					S1	1200
					S2	2820
					S3	2230
					S	3850
					b	300
					E	3900
					H	3810	3812	3818	2820	3822		3828
					H1	950+HO
					H3	2960	2964	3070	3272	3274	3474
					H4	1927	1625	1919	1917	1915		1907
					H5	1640
					B	9100
				A6	L	4400
					S1	1200
					S2	2820
					S3	2230
					S4	3850
					b	300
					E	3900
					H	3812	3814	3820	3822	3824		3828
					H1	950+H0
					H3	2962	2966	3072	3274	3276	3476
					H4	1925	1923	1917	1915	1913		1905
					H5	1640
Weight		trolley		A5	Kg	41389
				A6		41578
		Total weight		A5		80100	85100	90500	99600	106100	112400	124500
				A6		81500	86800	92300	101500	108300	114700	126800
Max wheel load				A5	KN	401	416	432	451	464	476	494
				A6		403	419	435	453	466	479	497
Seel track						QU100
Power source						380V 50H 3-Phase A.C.380V 50Hz
