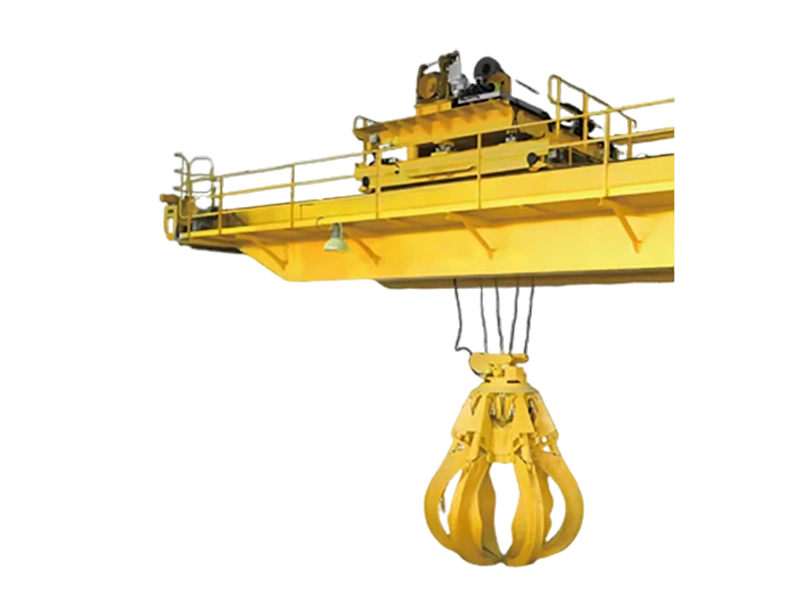

Double Girder Garbage Grab Crane

The waste grab crane serves as the core equipment in the waste feeding systems of modern municipal waste-to-energy plants. Positioned above the waste storage pit, it primarily handles operations such as waste feeding, transportation, mixing, retrieval, and weighing. Our company's waste grab cranes are capable of performing rigorous lifting and conveying tasks, ensuring the smooth operation of waste-to-energy plants. This crane supports manual, semi-automatic, and fully automatic control modes.

Technical Data

Productivity(t/a)			450～600	600～800	800～1000	1000～1200		1200～1500	1600
Recommended Nominal Lifting Capacity (t)			5	6.3	8	10	11	12.5	16
Recommended Grab Characteristics		Volume (m³)	2～2.5	3.2～4.2	4.2～5	5～6	6～6.3	6.3～8	10～12
Recommended Grab Characteristics		Dead Weight (t)	2.03～2.21	2.91～3.3	3.3	3.3～4.9	4.78～4.9	4.78～5.8	7.05～9.4
Recommended Job Level			A6~A7	A6~A7	A7	A7~A8 A7~A8		A7~A8 A7~A8
Span			18	22.5	22.5	22.5		28.5
Recommended Speed (m/min)	Lifting speed		35	40	45	45	45	45	45
	trolley speed		40	40	45	45	50	50	50
	crane speed		50	50	50	60	60	65	65
Total Power			35.9	53.2	74	105	106.5	130.5	152.5
Max wheel load			90	110	140	160	170	190	226
Recommended Power Cable for Overhead Crane Recommended Running Rail Model			112.6	114	116	116	120a	120a	120a
Recommended Running Rail for Overhead Crane Recommended Rail Model			p24	p38	p43	p43	p50	QU80	QU80

ЧАСТО ЗАДАВАЕМЫЕ ВОПРОСЫ

Are you Manufacturer or Trading Company?

We are an integrated industrial and trade enterprises. We have our own R&D team, factory and marketing department.
Which standard of your crane and crane components apply to?

Our Crane can design and manufacture base on FEM, ISO EN, GB standard.
How do you ensure your product quality?

All our processes strictly adhere to ISO-9001 procedures, which include Material Traceability, ISO WPQR and welder certificate, Measuring Device Calibration, NDT for the welding, and full assembling and load testing before delivery.
How can I make payment?

We accept T/T bank transfer, Paypal.
How can I assembly the cranes in my factory?

We suggest you to recruit a crane service team in local to install the crane base on our Installation Guideline and User manual. If cannot, we can send engineer to your factory to guide you do the installation with extra charge, and the transportation, accommodation, translator shall be covered by your side also.
