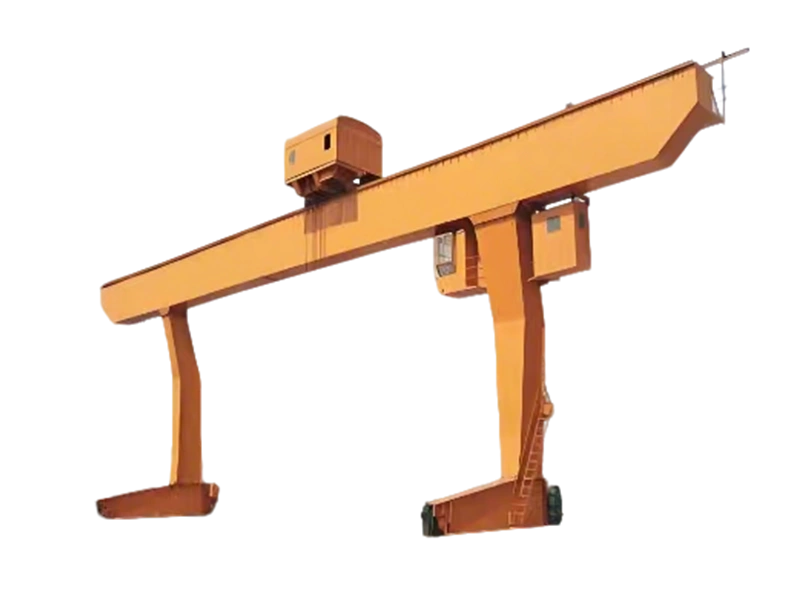

BMH Model Electrical hoist Gantry crane is used together with CD₁ 、MD₁Model electrical hoists .It is a track travelling small and medium-sized crane .Its proper lifting weight is 1 to 16 tons .proper span is 5 to 30 meters.its proper working temperature is -20℃to 40℃. The product is a general purpose use crane,ofen used in meching shop to lift goods .The product has ground controlling or remote controlling system .unload or grab materials .Using the special gear box can make the workshop widely.
| Lifting capacity | t | 2 | |||||||
| Span | m | 10 | 12 | 16 | 20 | ||||
| Lifting Height | m | 6 | |||||||
| Travelling mechanism | Travelling Speed | Ground | m/min | 20 | |||||
| Controling Room | 20 30 | ||||||||
| Motor | Ground | ZDY(D),21-4/0.8×2 | ZDY,(D)22-4/1.5×2 | ||||||
| Controling Room | ZDR100-4(D)1.5×2 | ||||||||
| Reducer | LDAC,LDA₁ | ||||||||
| Wheel diameter | mm | φ270 | |||||||
| Eleet rie hoist | Type | CD, MD, | |||||||
| Lifting speed | m/min | 8 | 8/0.8 | ||||||
| Travelling speed | m/min | 20(30) | |||||||
| Model | Lifting | ZD,31-4/3 ZDS,0.4/3 | |||||||
| Travelling | ZDY,12-4/0.4 | ||||||||
| working system | A4 | ||||||||
| Steel track recommended | P24 | ||||||||
| Power souree | 380V 50Hz | ||||||||
| The Crane Weight | Ground | Kg | 3250 | 3550 | 4050 | 5350 | |||
| Controling Room | Kg | 4050 | 4350 | 4850 | 6150 | ||||
| Max Wheel Load | KN | 14 | 19 | 27 | 35 | ||||
| Basic Dimensions | H, | mm | 1020 | ||||||
| H₂ | 550 | 595 | 700 | 900 | |||||
| H₃ | 490 | 490 | 580 | 745 | |||||
| B | 4400 | ||||||||
| B₁ | 3300 | ||||||||
| B₂ | 1400 | ||||||||
| B₃ | 2000 | 2500 | 3000 | ||||||
We are an integrated industrial and trade enterprises. We have our own R&D team, factory and marketing department.
Our Crane can design and manufacture base on FEM, ISO EN, GB standard.
All our processes strictly adhere to ISO-9001 procedures, which include Material Traceability, ISO WPQR and welder certificate, Measuring Device Calibration, NDT for the welding, and full assembling and load testing before delivery.
We accept T/T bank transfer, Paypal.
We suggest you to recruit a crane service team in local to install the crane base on our Installation Guideline and User manual. If cannot, we can send engineer to your factory to guide you do the installation with extra charge, and the transportation, accommodation, translator shall be covered by your side also.
