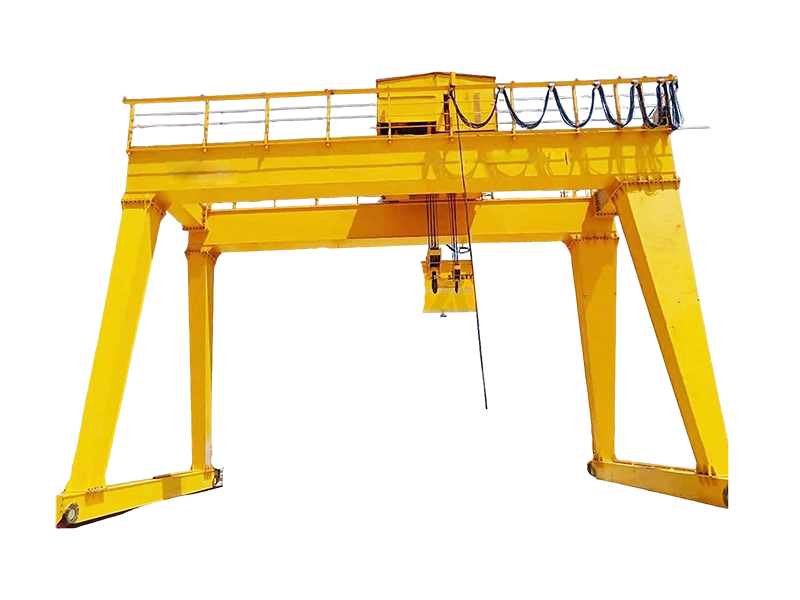

Double-Girder Hook Gantry Crane For Engineering Purposes

It consists of four main parts,namely,the bridge structure,the travelling mechanism,the trolley and the electric equipment.All movements of the crane are controlled form the cabin.Either rigid shapes of steel(angles or tees)or flexible insulated cable shall be selected to be utilized as runway conductors and proposed in the order by the purchaser.Max.and min value of environment temperature,the sort of power supply,the voltage and other data shall be proposed by user when filling in the order form.

Applied the situation

Mourn the hook the machine of double girder engineering door to be applicable to highway,bridge, power station etc.the developments industrial plant to proceed to generally pack to unload and rise the heavy porterage work.

Technical Specifications

Lifting capacity				t	25/5	50/12.5	80
Span				m	22	22	34
Lifting Height		M a i n		m	9	8	15
Lifting Height		Aux		m	9.5	9	---
Working system					A5(intermediate)
speed	Hoisting	M a i n		m/min	0.7-7.2	5.9	2.5
	Hoisting	Aux			19.4	10.5	18
	erab travelling				27	18.8	18
	trolley travelling				25.5	18.4	20
Electric motor	Hoisting	M a i n		Type /Kw	YZR250M2-8/42	YZR280M-10/55	YZR280S-8/52
	Hoisting	A u x			YZR180L-6/17	YZR200L6/26	---
	erab travelling				YZR160M1-6/6.3	YZR160M2-6/8.5	ZDR125-4/2×4.6
	trolley travelling				YZR160L-6/2×13	YZRE132M2-4/2×5.5	YZRE132M2-4/4×5.5
Total Weight	c r a b			t	8.55	16.168	14.83
Total Weight	Total Weight			t	52.83	66.981	105.08
Max.wheel Load				KN	293	196	188
Steel track Recommended					P43
Power souree					3-phase A.C.50Hz 380V
Main Dimensions			S	mm	7000	6000	8000
			S1		8820	8494	99850
			S2		2500	3000	2000
			H		9000	8000	15000
			H1		9500	9000	---
			H0		12700	12040	21050
			L		22000	22000	34000
			L1		2400	3580	1800
			t1		600	1900	1000
			t2		1370	600	1000
			t3		2000	2000	3000
			t4		1025	2000	3000
			t5		---	1200	---
			t6		870	1195	---

ЧАСТО ЗАДАВАЕМЫЕ ВОПРОСЫ

Are you Manufacturer or Trading Company?

We are an integrated industrial and trade enterprises. We have our own R&D team, factory and marketing department.
Which standard of your crane and crane components apply to?

Our Crane can design and manufacture base on FEM, ISO EN, GB standard.
How do you ensure your product quality?

All our processes strictly adhere to ISO-9001 procedures, which include Material Traceability, ISO WPQR and welder certificate, Measuring Device Calibration, NDT for the welding, and full assembling and load testing before delivery.
How can I make payment?

We accept T/T bank transfer, Paypal.
How can I assembly the cranes in my factory?

We suggest you to recruit a crane service team in local to install the crane base on our Installation Guideline and User manual. If cannot, we can send engineer to your factory to guide you do the installation with extra charge, and the transportation, accommodation, translator shall be covered by your side also.
